- 알리익스프레스에서 구입했으나 자료가 없어서 결국 DIYMALL 사이트에서 찾은 구글드라이브 링크도
자료가 맞지않아서 esp8266과 oled display소스의 테스트 샘플을 보고 DIYmall의 구글드라이브 테스트 소스를
수정해서 동작하게 소스를 수정할수 있었습니다.
(Source code of DIYMALL was not suitable for working. So I modified source codes of DIYMALL. After all, OLED display can display temperature and humidity from BME280 sensor through I2C interfaces. )
#ESP8266 #ESP32 #weather_station #arduino #I2C
read temperature and humidity with esp8266 and one module(temperature, humidity)
1. product link:
18.52€ |MiniDK – Kit de Station météo ESP8266, panneau de développement, écran OLED 0.96, capteur de température et d'h
Achetez malin, vivez mieux! Aliexpress.com
fr.aliexpress.com

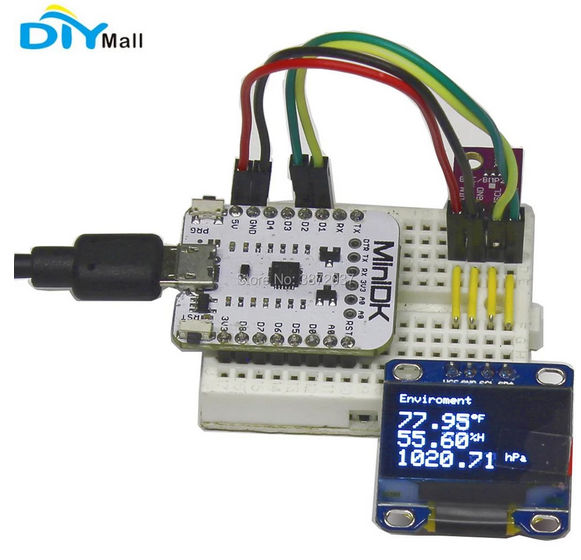

- 판매사이트의 사진 , MiniDK 보드와 BME280, OLED display 연결선을 보여줍니다(I2C)
-실제 연결한 선
>I2C는 공통연결이라 선을 공유함. (VCC[5V],GND, D2,D1 -->VCC,GND,SCL,SCA)--VCC,GND,SCL,SDA
A.1 BME280 test source
A.1.1 link
- lastminuteengineers.com/bme280-esp8266-weather-station/
Create A Simple ESP8266 Weather Station With BME280
Learn to interface BME280 Sensor with ESP8266 NodeMCU, Display Temperature, Humidity, Pressure & Altitude on Web Server & Dynamically load data with AJAX
lastminuteengineers.com
A.1.2 test source
A.2. OLED display test with ESP8266
randomnerdtutorials.com/esp8266-0-96-inch-oled-display-with-arduino-ide/
ESP8266 0.96 inch OLED Display with Arduino IDE | Random Nerd Tutorials
This guide shows how to use the 0.96 inch SSD1306 OLED display with ESP8266 using Arduino IDE. Learn how to write text, set different fonts, draw shapes and display bitmaps images.
randomnerdtutorials.com
A.3. mini-DK 판매사이트의 자료
- 구글 드라이브 링크:
https://drive.google.com/open?id=1ClXhsZ9YhpIe02s92lyQP42AXGGmPCmo
MiniDK-Weather-station-kit-DIY0074.zip
drive.google.com
A.3.2 판매자 링크:
www.diymalls.com/MiniDK-Weather-Station-Kit?search=minidk
MiniDK Weather Station Kit

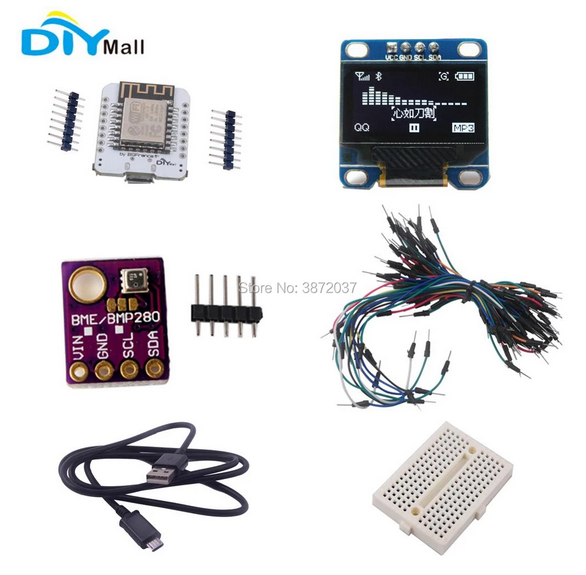

Package Includes: 1 X MiniDK 1 X 0.96 OLED White 1 X 170 Tie Point Breadboard 1 X 65pcs Jump Wire 1 X Micro USB Cable 1 X BME280 Pressure Humidity Temperature Sensor Document link: https://drive.google.com/open?id=1ClXhsZ9YhpIe02s92lyQP42AXGGmPCmo
www.diymalls.com
