1. UART로 디버깅 메시지 출력관련

- 어느 UART로 출력하는지 ?

> UART1 인것 같은데 board의 어느 핀으로 나가는 건지 아니면 USB cable 로 PC로 연결된 COM port로 연결되는지?

2. DEMO example에서 FND예제는 다른 추가 장치(예. 7Segment) 가 있는지?

3. 보드사용매뉴얼이나 추가 문서의 위치 요청?

-  공식적인 페이지가 있는지(예. WIKI page ? )

- StarterKit 보드에 맞는 매뉴얼 .

> https://www.abov.co.kr/kr/sub03/sub03_1.php?ca_id=102010&it_id=1622694976

★ debugging message

         // print
         _DBG( "PE0 ~ PE3 Output is High Level. \n\r" );

https://create.arduino.cc/projecthub/ronbentley1/button-switch-using-an-external-interrupt-7879df

https://m.blog.naver.com/PostView.naver?isHttpsRedirect=true&blogId=yuyyulee&logNo=220310875023

https://learn.adafruit.com/adafruit-proto-shield-arduino?view=all

http://www.martyncurrey.com/keypads/

https://forum.arduino.cc/t/4x4-matrix-keypad-and-interrupt/460003

https://circuitdigest.com/microcontroller-projects/arduino-interrupt-tutorial-with-examples

https://forum.arduino.cc/t/keypad-without-keypad-library/656198/2

GPIO expander

https://m.blog.naver.com/PostView.naver?isHttpsRedirect=true&blogId=specialist0&logNo=220704124150

- 선연결 테스트용

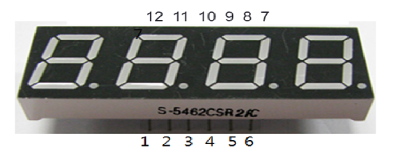

https://create.arduino.cc/projecthub/SAnwandter1/programming-4-digit-7-segment-led-display-2d33f8

- 효율적인 프로그램 코딩용

https://popcorn16.tistory.com/164

// 핀 번호 선언
int pos_pins[] = {8,11,12,7}; // 몇번째 세그먼트
int num_of_pos = 4;
int pins[] = {9,13,5,3,2,10,6,4}; // 세그먼트 a, b, c, d, e, f, g, dp
int num_of_pins = 8;
int delaytime = 5;

// 세그먼트에 표시 할 숫자
bool segment[10][8] = {
  {true, true, true, true, true, true, false, false}, //0
  {false, true, true, false, false, false, false, false}, //1
  {true, true, false, true, true, false, true, false}, //2
  {true, true, true, true, false, false, true, false}, //3
  {false, true, true, false, false, true, true, false}, //4
  {true, false, true, true, false, true, true, false}, //5
  {true, false, true, true, true, true, true, false}, //6
  {true, true, true, false, false, false, false, false}, //7
  {true, true, true, true, true, true, true, false}, //8
  {true, true, true, true, false, true, true, false} //9
};

void setup() {
  for(int i=0; i<num_of_pos; i++) {
     pinMode(pos_pins[i], OUTPUT);
  }
  for(int i=0; i<num_of_pins; i++) {
    pinMode(pins[i], OUTPUT);
  }
}

void loop() {
  int num[] = {9, 8, 7, 6};
  digits_4_seven_segment(num);
}

// 원하는 위치에 표시되도록 set
void set_position(int pos){
  for(int i = 0; i < 4; i++) {
    if(i + 1 == pos){
      digitalWrite(pos_pins[i], LOW);
    } else {
      digitalWrite(pos_pins[i], HIGH);
    }
  }
}

// 원하는 숫자 표시
void set_number(int number){
  for(int i=0;i<num_of_pins;++i){
    segment[number][i] ? digitalWrite(pins[i], HIGH) : digitalWrite(pins[i], LOW);
  }
}

// 원하는 위치, 원하는 숫자를 표시
void set_seven_segment(int pos, int number){
  set_position(pos);
  set_number(number);
}

// 입력된 4자리 숫자를 세그먼트에 표시
void digits_4_seven_segment(int num[]){
  for(int i=0;i<num_of_pos;++i){
    set_seven_segment(i+1,num[i]);
    delay(delaytime);
  }
}

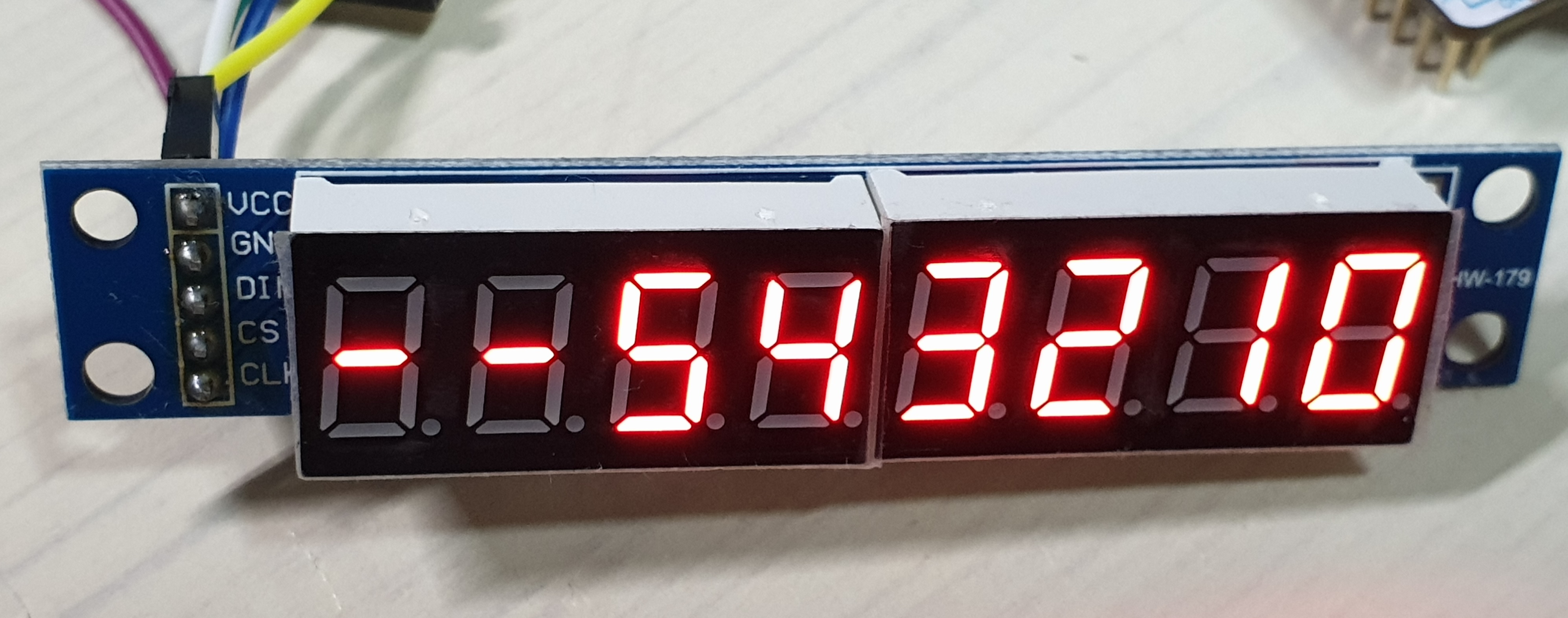

- 기타 SPI통신 이용:

https://rs29.tistory.com/13

- Interfacing 7 segment display with stm32f103 microcontroller

https://www.engineersgarage.com/stm32-microcontroller-7-segment-interface/

KEIL MDK compiled code and RAM usage details

#W7500 #KEIL #uVision #LinkError #Sectionsofaggregatesize0xcbytescouldnotfitinto

-> solution:  decrease size of variable , ex: uint8_t SomeVariable[128] ;// 128 --> 120

Generally, MCU contains storage space: on-chip Flash and on-chip RAM, RAM is equivalent to memory, and Flash is equivalent to hard disk. The compiler divides a program into several parts and stores them in different memory areas of the MCU.
After the Keil project is compiled, there will be a prompt message about the space occupied by the corresponding program, as shown below:
Program Size: Code=12266 RO-data=790 RW-data=232 ZI-data=8096

- build result of SNMP firmware :

The Program Size mentioned above contains the following parts:
1) Code: Code segment, which stores the code part of the program;
2) RO-data: read-only data segment, storing constants defined in the program;
3) RW-data: Read and write data segment, store global variables initialized to non-zero values;
4) ZI-data: 0 data segment, storing uninitialized global variables and variables initialized to 0;

After compiling the project, a .map file will be generated, which explains the size and address occupied by each function. The last few lines of the file also explain the relationship between the above several fields:
Total RO Size (Code + RO Data) 13056 ( 12.75kB)
Total RW Size (RW Data + ZI Data) 8328 ( 8.13kB)
Total ROM Size (Code + RO Data + RW Data) 13288 ( 12.98kB)

- Last part of Map file when SNMP firmware build :

1) RO Size includes Code and RO-data, indicating the size of the Flash space occupied by the program;
2) RW Size includes RW-data and ZI-data, indicating the size of RAM occupied during runtime;
3) ROM Size includes Code, RO Data, and RW Data, indicating the size of the Flash space occupied by the programming program.

Before the program runs, a file entity needs to be burned into the STM32 Flash, usually a bin or hex file. The burned file is called an executable image file. As shown in the left figure below, it is the memory distribution after the executable image file is burned to STM32. It contains two parts: the RO segment and the RW segment: the RO segment saves the data of Code and RO-data, and the RW segment saves The data of RW-data is not included in the image file because ZI-data is all 0.
STM32 is booted from Flash by default after power-on. After booting, the RW-data (initialized global variables) in the RW segment will be moved to RAM, but the RO segment will not be moved, that is, the execution code of the CPU is read from Flash. In addition, the ZI segment is allocated according to the ZI address and size given by the compiler, and this RAM area is cleared, as shown in the right figure below; the remaining RAM space is used as a dynamic memory heap.

[ W7500 / Link error ]  Sections of aggregate size 0xc bytes could not fit into

#STM32M0  #KEIL #uVision #LINKERROR #COULDNOTFITINTO #Sectionsofaggregatesize #ErrorL6407E

<BEFORE>
linking...
.\Obj\SNMPOOOOO_OOOO_OO.axf: Error: L6406E: No space in execution regions with .ANY selector matching main.o(.data).
.\Obj\SNMPOOOOO_OOOO_OO.axf: Error: L6406E: No space in execution regions with .ANY selector matching retarget.o(.data).
.\Obj\SNMPOOOOO_OOOO_OO.axf: Error: L6406E: No space in execution regions with .ANY selector matching main.o(.data).
.\Obj\SNMPOOOOO_OOOO_OO.axf: Error: L6407E: Sections of aggregate size 0xc bytes could not fit into .ANY selector(s).

<AFTER>
linking...
Program Size: Code=36900 RO-data=4528 RW-data=6820 ZI-data=8972


// map file
    Total RO  Size (Code + RO Data)                41428 (  40.46kB)
    Total RW  Size (RW Data + ZI Data)             15792 (  15.42kB)
    Total ROM Size (Code + RO Data + RW Data)      42284 (  41.29kB)

How to fix:

- decrease size in Variable declarations.

ex. uint8_t SomeVariable[256] ;  // ex. 256 ->128

> above change makes RAM(RW size) size smaller. Then I can fix this problem 'could not fit into'.

*. https://developer.arm.com/documentation/ka002785/latest

- W7500 (coretex m0) memory map

http://wizwiki.net/wiki/lib/exe/fetch.php?media=products:w7500:overview:w7500_memory_map.png

라즈베리파이의 네트워크 우선순위를 무선우선으로 변경할때

change network routing priority to wifi (first)

https://www.raspberrypi.org/forums/viewtopic.php?t=278033
