  1. 2024.10.29 :: Compile on both ESP32 and ESP8266
  2. 2024.10.29 :: STM Flash loader 1
  3. 2024.10.12 :: Keil, uVision , Compile size check
  4. 2024.09.20 :: LTE modem sample
  5. 2024.09.10 :: ESP32 UDP SEND_RECV example
  6. 2024.09.06 :: ESP32 UDP SEND_RECV example
board_android-IoT/ESP32 2024. 10. 29. 23:21

Compile on both ESP32 and ESP8266



-

#if defined(ESP8266)
#pragma message "ESP8266 stuff happening!"
#elif defined(ESP32)
#pragma message "ESP32 stuff happening!"
#else
#error "This ain't a ESP8266 or ESP32, dumbo!"
#endif



https://community.platformio.org/t/compile-on-both-esp32-and-esp8266/14356



Compile on both ESP32 and ESP8266

what is the best way to #ifdef ESP32 and #ifdef ESP8266 is there some variable I can use to ifdef some part of the code in case using esp8266 and some part in case I use esp32? thanks

community.platformio.org





'board_android-IoT > ESP32' 카테고리의 다른 글

ESP32 응용 제품  (0) 2025.03.26
ESP32-S3-A7670E-4G , Developement environment  (0) 2024.11.28
ESP32 UDP SEND_RECV example  (0) 2024.09.10
ESP32 UDP SEND_RECV example  (0) 2024.09.06
ESP8266 , DB18B20 connection  (0) 2024.07.29
posted by cskimair
:
board_android-IoT/STM32F 2024. 10. 29. 18:10

STM Flash loader





-

https://blog.naver.com/PostView.naver?blogId=ansdbtls4067&logNo=221510145642&parentCategoryNo=&categoryNo=&viewDate=&isShowPopularPosts=false&from=postView



STM32F429I-DISC1 보드의 MCU 내장 Bootloader를 이용한 펌웨어 다운로드 - 2

안녕하세요? 땜쓰 전자연구소의 소장 땜쓰입니다. 이번 포스팅에서는 지난 포스팅인 "STM32F429I...

blog.naver.com





-

https://www.st.com/en/development-tools/flasher-stm8.html



FLASHER-STM8 - STMicroelectronics

FLASHER-STM8 - STM8 Flash loader demonstrator (UM0462), FLASHER-STM8, STMicroelectronics

www.st.com







'board_android-IoT > STM32F' 카테고리의 다른 글

Keil compiler printf(with uart) 하기  (0) 2025.02.20
Keil compiler printf(with uart) 하기  (0) 2025.02.18
Keil, uVision , Compile size check  (0) 2024.10.12
LTE modem sample  (0) 2024.09.20
SWO (Serial Wire Output) setting  (2) 2024.07.23
posted by cskimair
:
board_android-IoT/STM32F 2024. 10. 12. 13:27

Keil, uVision , Compile size check

- Keil, uVision5 , how to check compile code size limit  check

> Flash size: Code + RO-data + RW-data



#W7500_compile_size_check  #STM32_compile_size_check #W7500

컴파일 데이타배치


Program Size: Code=10608 RO-data=268 RW-data=80 ZI-data=1632
컴파일하면 결과가 이럻게 나오는데

싸이즈
1. ZI Data: Zero Initialized Data
2. RO Data are the constants.
Total RAM Size = RW Data + ZI Data
Total ROM Size = Code + RO Data + RW Data

https://blog.naver.com/gauya/220129979980



Keil, uVision5

  - 컴파일 데이타배치 Program Size: Code=10608 RO-data=268 RW-data=80 ZI-data=1632 &nb...

blog.naver.com





'board_android-IoT > STM32F' 카테고리의 다른 글

Keil compiler printf(with uart) 하기  (0) 2025.02.18
STM Flash loader  (1) 2024.10.29
LTE modem sample  (0) 2024.09.20
SWO (Serial Wire Output) setting  (2) 2024.07.23
Porting STM32F1 Firmware to STM32F4  (0) 2024.07.20
posted by cskimair
:
board_android-IoT/STM32F 2024. 9. 20. 14:46

LTE modem sample



- 개발보드:

https://ko.aliexpress.com/item/1005005675389969.html?spm=a2g0o.productlist.main.17.4adf4f10y9Q0el&algo_pvid=5dc88406-ce16-48a2-98c9-2ee7fecdf5fd&algo_exp_id=5dc88406-ce16-48a2-98c9-2ee7fecdf5fd-8&pdp_npi=4%40dis%21KRW%2121350%2121350%21%21%21110.10%21110.10%21%40210133e017268091133244640efca3%2112000033977202674%21sea%21KR%21177274289%21X&curPageLogUid=8pqk0V6Yza92&utparam-url=scene%3Asearch%7Cquery_from%3A



GSM 모듈 개발 코어 보드 TTL 직렬 포트 포함, A7670E, A7670SA, A7670G, A7672S, 4G Cat 1 - AliExpress 30

Smarter Shopping, Better Living! Aliexpress.com

ko.aliexpress.com

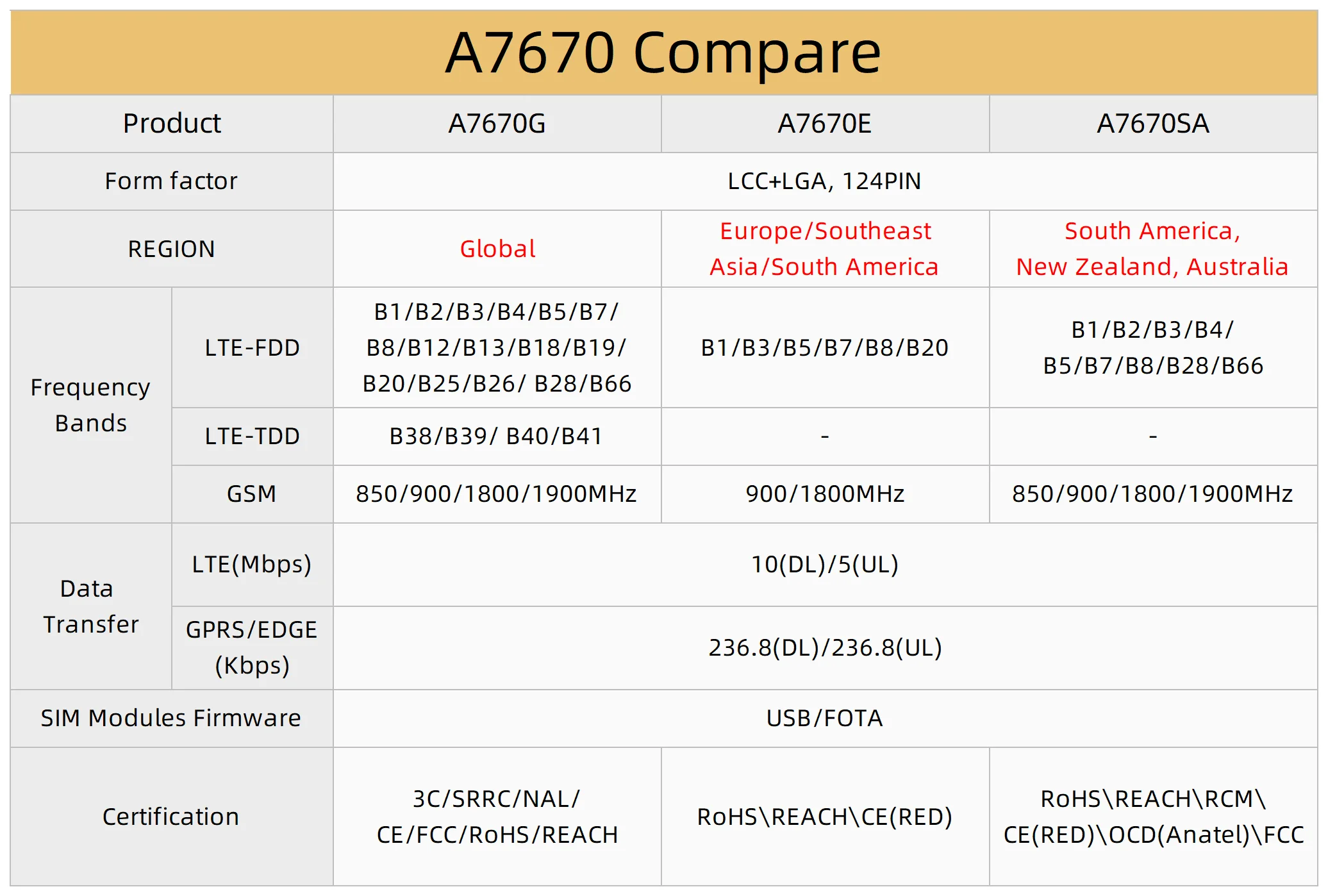

- 비교

Github 링크:

https://github.com/Xinyuan-LilyGO/LilyGO-T-A7670X



GitHub - Xinyuan-LilyGO/LilyGO-T-A76XX: LilyGo A7670X A7608X SIM7670G series

LilyGo A7670X A7608X SIM7670G series. Contribute to Xinyuan-LilyGO/LilyGO-T-A76XX development by creating an account on GitHub.

github.com



-

https://ko.aliexpress.com/item/1005003036514769.html?spm=a2g0o.tm1000010823.d2.1.7a1f11b5TisSrJ&pvid=c4ccf7a3-10c5-4cd7-9c27-23ec29976b0f&pdp_ext_f=%7B%22ship_from%22:%22%22,%22sku_id%22:%2212000023370187237%22%7D&scm=1007.51228.386262.0&scm-url=1007.51228.386262.0&scm_id=1007.51228.386262.0&pdp_npi=4%40dis%21KRW%21%E2%82%A9%2050%2C333%21%E2%82%A9%2045%2C300%21%21%2136.78%2133.10%21%402101584d17268087425621075e96ae%2112000023370187237%21gdf%21KR%21177274289%21X&channel=bigSave&aecmd=true&_gl=1*fabh5i*_gcl_au*MTQyNTg4MjI5LjE3MjEwOTg5MTI.*_ga*NDA0MjEyMjk5LjE3MTMyMzM2MzM.*_ga_VED1YSGNC7*MTcyNjgwODUyMi4xMDAuMS4xNzI2ODA4OTE1LjYwLjAuMA..



LILYGO® TTGO T-A7670G/E/SA R2 4G 개발 보드 LTE CAT1 SIM 모듈 ESP32 지원 GSM/GPRS/EDGE TF 카드 A7670G A7670E A7670SA -

Smarter Shopping, Better Living! Aliexpress.com

ko.aliexpress.com

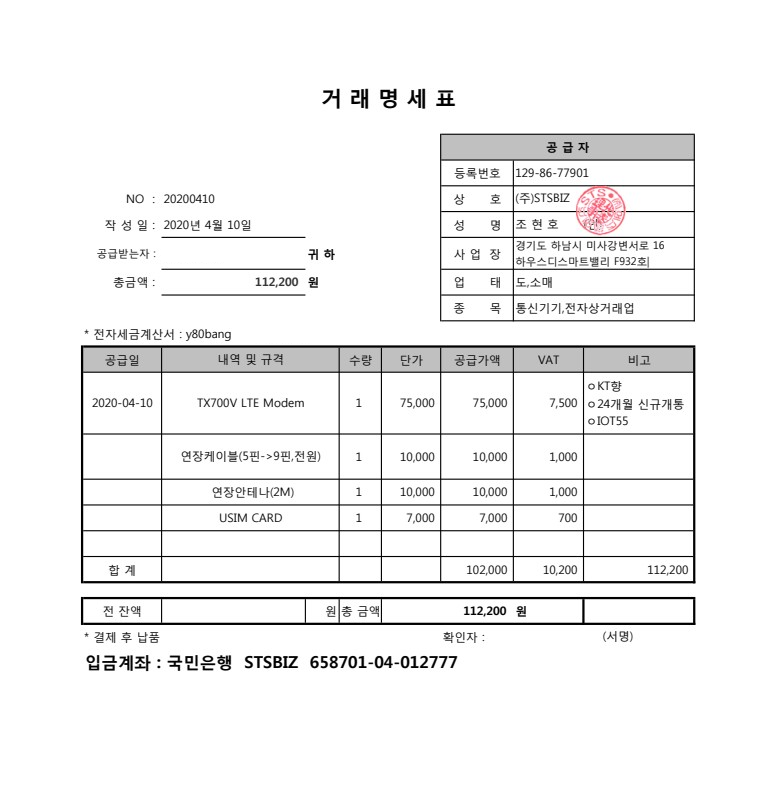

- 기존모뎀:

-

'board_android-IoT > STM32F' 카테고리의 다른 글

STM Flash loader  (1) 2024.10.29
Keil, uVision , Compile size check  (0) 2024.10.12
SWO (Serial Wire Output) setting  (2) 2024.07.23
Porting STM32F1 Firmware to STM32F4  (0) 2024.07.20
CS5480 - Voltage, Current RMS calculation IC  (0) 2024.07.10
posted by cskimair
:
board_android-IoT/ESP32 2024. 9. 10. 00:24

ESP32 UDP SEND_RECV example



- ESP32 - Arduino source

/*
 *  This sketch sends random data over UDP on a ESP32 device
 *
 */
#include <WiFi.h>
#include <NetworkUdp.h>
/*
8:28:24.965 -> entry 0x403c98ac
18:28:25.120 -> Connecting to WiFi network: Csk6457
18:28:25.214 -> Waiting for WIFI connection...
18:28:25.297 -> WiFi connected! IP address: 192.168.43.217
18:28:27.178 -> UDP recv=0
18:28:29.218 -> UDP recv=217
*/
// WiFi network name and password:
const char *networkName = "Csk6457";
const char *networkPswd = "1q2w3e4r@";

//IP address to send UDP data to:
// either use the ip address of the server or
// a network broadcast address
const char *udpAddress = "192.168.43.1";  //"192.168.0.255";
const int udpPort = 56680;
const int localPort = udpPort ;


//Are we currently connected?
boolean connected = false;

//The udp library class
NetworkUDP udp;
char packetBuffer[255];

void setup() {
  // Initialize hardware serial:
  Serial.begin(115200);

  //Connect to the WiFi network
  connectToWiFi(networkName, networkPswd);
}
int packetSize ;
unsigned long testIDPrev  ;
unsigned long interval = 2000 ; //2000= 2 seconds

void loop() {
  //only send data when connected
  if (connected) {
    unsigned long testID = millis();

    if( testID - testIDPrev >= interval ){
      testIDPrev = testID ;
      //Send a packet
      udp.beginPacket(udpAddress, udpPort);
      udp.printf("Since boot: %lu(ms)\n", millis() ); // millis() / 1000);
      udp.endPacket();

      // receive packets
      packetSize = udp_readPackets() ;

    }

  }
  //Wait for 2 second
  //delay(2000);
}
int packetSizePrev ;
int udp_readPackets()
{
  int packetSize   ;

  packetSize = udp.parsePacket();
  if (packetSize> 0 ) {
    Serial.print(" Received packet from : ");
    Serial.println(udp.remoteIP());
    Serial.print(" Size : ");
    Serial.println(packetSize);

    int len = udp.read(packetBuffer, 255);
    if (len > 0) packetBuffer[len - 1] = 0;
    Serial.printf("[client<-server]Recv Data: %s\n", packetBuffer);
  }

  if( packetSize != packetSizePrev ) {
    packetSizePrev = packetSize ;
    Serial.printf("UDP recv=%d\n", packetSize) ;
  }


  return  packetSize  ;
}

void connectToWiFi(const char *ssid, const char *pwd) {
  Serial.println("Connecting to WiFi network: " + String(ssid));

  // delete old config
  WiFi.disconnect(true);
  //register event handler
  WiFi.onEvent(WiFiEvent);  // Will call WiFiEvent() from another thread.

  //Initiate connection
  WiFi.begin(ssid, pwd);

  Serial.println("Waiting for WIFI connection...");
}

// WARNING: WiFiEvent is called from a separate FreeRTOS task (thread)!
void WiFiEvent(WiFiEvent_t event) {
  switch (event) {
    case ARDUINO_EVENT_WIFI_STA_GOT_IP:
      //When connected set
      Serial.print("WiFi connected! IP address: ");
      Serial.println(WiFi.localIP());
      //initializes the UDP state
      //This initializes the transfer buffer
      udp.begin(WiFi.localIP(), udpPort);
      connected = true;

      udp.begin(localPort); //20240906-1
      break;
    case ARDUINO_EVENT_WIFI_STA_DISCONNECTED:
      Serial.println("WiFi lost connection");
      connected = false;
      break;
    default: break;
  }
}

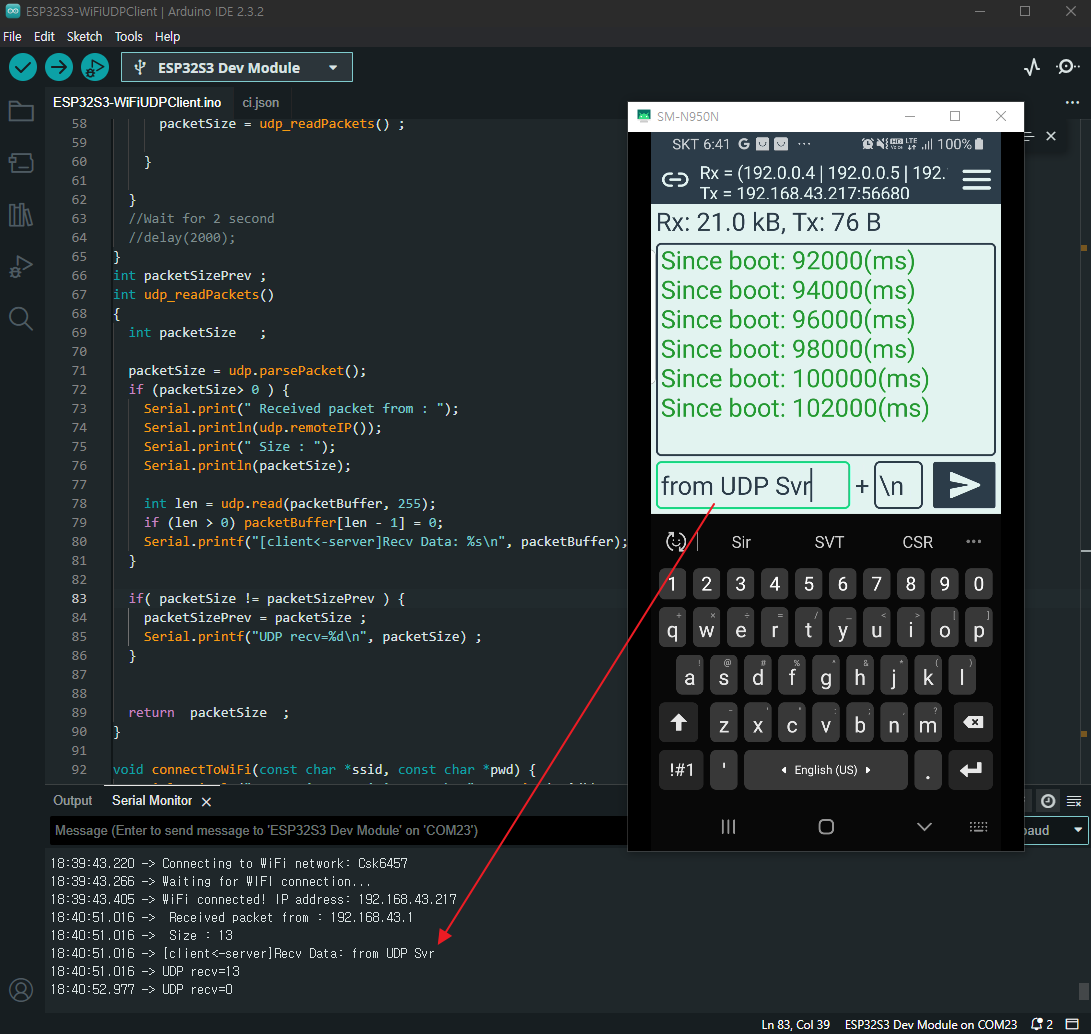

- 스마트폰에서 ESP32 로 UDP통신을 하는 화면





'board_android-IoT > ESP32' 카테고리의 다른 글

ESP32-S3-A7670E-4G , Developement environment  (0) 2024.11.28
Compile on both ESP32 and ESP8266  (0) 2024.10.29
ESP32 UDP SEND_RECV example  (0) 2024.09.06
ESP8266 , DB18B20 connection  (0) 2024.07.29
ESP32 Dev Board DTR/RTS  (0) 2024.06.07
posted by cskimair
:
board_android-IoT/ESP32 2024. 9. 6. 18:47

ESP32 UDP SEND_RECV example



- ESP32 - Arduino source

/*
 *  This sketch sends random data over UDP on a ESP32 device
 *
 */
#include <WiFi.h>
#include <NetworkUdp.h>
/*
8:28:24.965 -> entry 0x403c98ac
18:28:25.120 -> Connecting to WiFi network: Csk6457
18:28:25.214 -> Waiting for WIFI connection...
18:28:25.297 -> WiFi connected! IP address: 192.168.43.217
18:28:27.178 -> UDP recv=0
18:28:29.218 -> UDP recv=217
*/
// WiFi network name and password:
const char *networkName = "Csk6457";
const char *networkPswd = "1q2w3e4r@";

//IP address to send UDP data to:
// either use the ip address of the server or
// a network broadcast address
const char *udpAddress = "192.168.43.1";  //"192.168.0.255";
const int udpPort = 56680;
const int localPort = udpPort ;


//Are we currently connected?
boolean connected = false;

//The udp library class
NetworkUDP udp;
char packetBuffer[255];

void setup() {
  // Initialize hardware serial:
  Serial.begin(115200);

  //Connect to the WiFi network
  connectToWiFi(networkName, networkPswd);
}
int packetSize ;
unsigned long testIDPrev  ;
unsigned long interval = 2000 ; //2000= 2 seconds

void loop() {
  //only send data when connected
  if (connected) {
    unsigned long testID = millis();

    if( testID - testIDPrev >= interval ){
      testIDPrev = testID ;
      //Send a packet
      udp.beginPacket(udpAddress, udpPort);
      udp.printf("Since boot: %lu(ms)\n", millis() ); // millis() / 1000);
      udp.endPacket();

      // receive packets
      packetSize = udp_readPackets() ;

    }

  }
  //Wait for 2 second
  //delay(2000);
}
int packetSizePrev ;
int udp_readPackets()
{
  int packetSize   ;

  packetSize = udp.parsePacket();
  if (packetSize> 0 ) {
    Serial.print(" Received packet from : ");
    Serial.println(udp.remoteIP());
    Serial.print(" Size : ");
    Serial.println(packetSize);

    int len = udp.read(packetBuffer, 255);
    if (len > 0) packetBuffer[len - 1] = 0;
    Serial.printf("[client<-server]Recv Data: %s\n", packetBuffer);
  }

  if( packetSize != packetSizePrev ) {
    packetSizePrev = packetSize ;
    Serial.printf("UDP recv=%d\n", packetSize) ;
  }


  return  packetSize  ;
}

void connectToWiFi(const char *ssid, const char *pwd) {
  Serial.println("Connecting to WiFi network: " + String(ssid));

  // delete old config
  WiFi.disconnect(true);
  //register event handler
  WiFi.onEvent(WiFiEvent);  // Will call WiFiEvent() from another thread.

  //Initiate connection
  WiFi.begin(ssid, pwd);

  Serial.println("Waiting for WIFI connection...");
}

// WARNING: WiFiEvent is called from a separate FreeRTOS task (thread)!
void WiFiEvent(WiFiEvent_t event) {
  switch (event) {
    case ARDUINO_EVENT_WIFI_STA_GOT_IP:
      //When connected set
      Serial.print("WiFi connected! IP address: ");
      Serial.println(WiFi.localIP());
      //initializes the UDP state
      //This initializes the transfer buffer
      udp.begin(WiFi.localIP(), udpPort);
      connected = true;

      udp.begin(localPort); //20240906-1
      break;
    case ARDUINO_EVENT_WIFI_STA_DISCONNECTED:
      Serial.println("WiFi lost connection");
      connected = false;
      break;
    default: break;
  }
}





- 스마트폰에서 ESP32 로 UDP통신을 하는 화면





'board_android-IoT > ESP32' 카테고리의 다른 글

Compile on both ESP32 and ESP8266  (0) 2024.10.29
ESP32 UDP SEND_RECV example  (0) 2024.09.10
ESP8266 , DB18B20 connection  (0) 2024.07.29
ESP32 Dev Board DTR/RTS  (0) 2024.06.07
ESP8266 web server  (0) 2024.06.02
posted by cskimair
:
